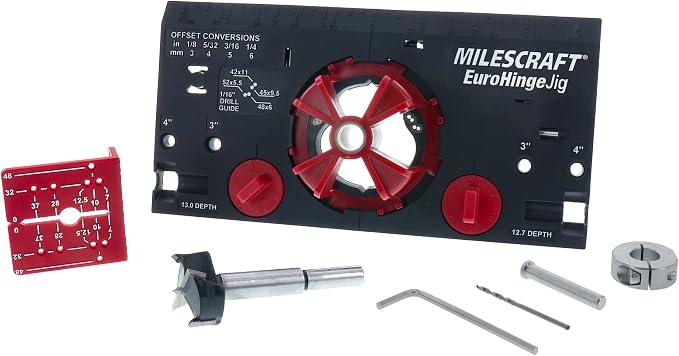

Milescraft 1342 Euro Hinge Jig – Concealed Hinge Jig, Drilling Guide, Drill Guide Jig for Framed and Frameless Cabinets. Metal Drill Guide Produces Perfect Hinge Holes. 35 mm Forstner Bit Included

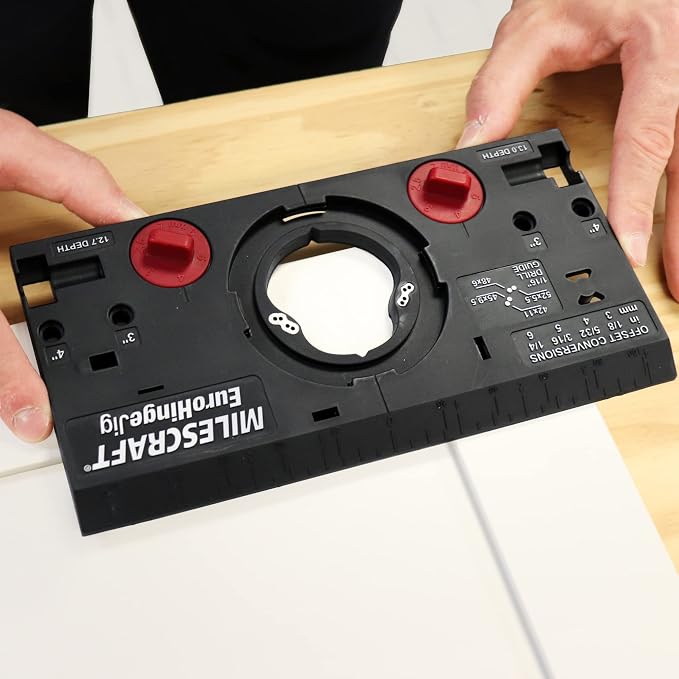

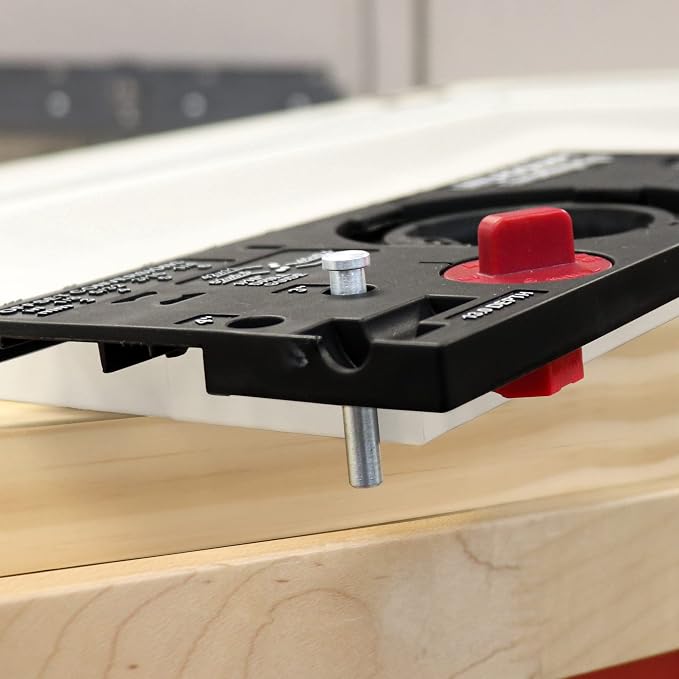

Two edge alignment knobs position the cup hole from the edge of the door, while the edge pin sets the distance from the top/bottom.

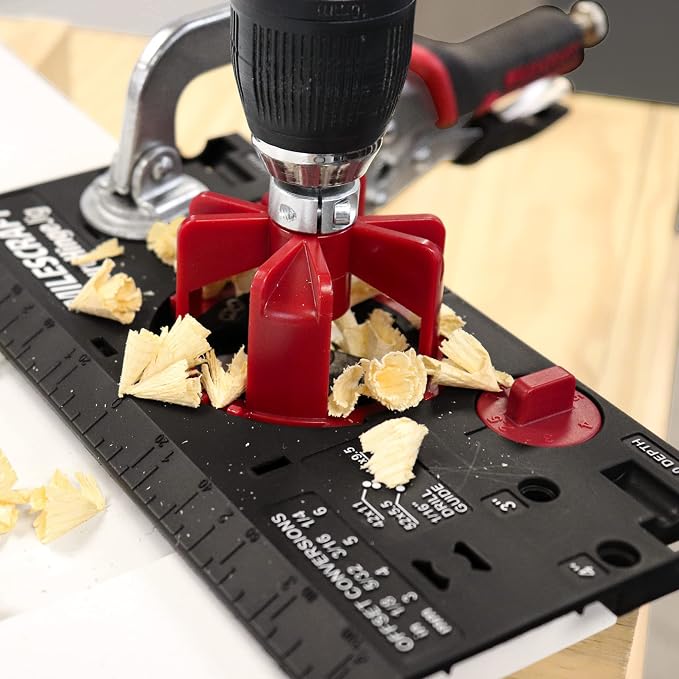

The drill guide with metal bushing locks into jig and creates a perfectly straight hinge cup hole
Guide bushings built into body of drilling jig leta you pre-drill pilot holes in 4 common locations, making sure hinges are straight and door closes true. The 1/16" diameter drill bit for pilot holes is included.

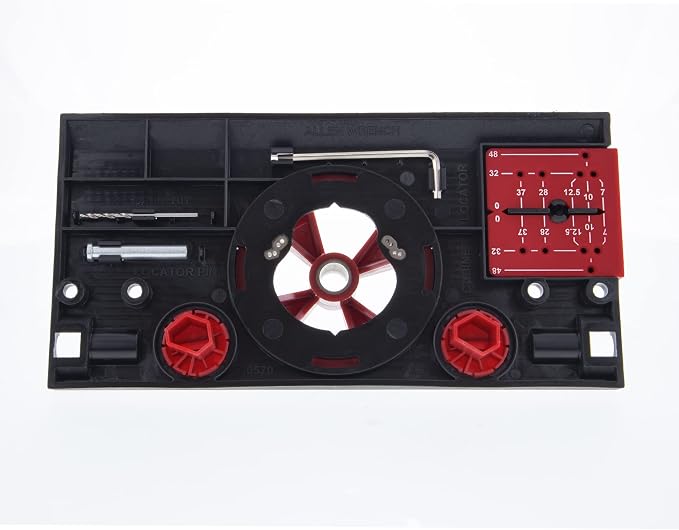

Easily set your cup hole depth on the included 35mm drill bit using the built-in depth setting fixtures on the left and right side.

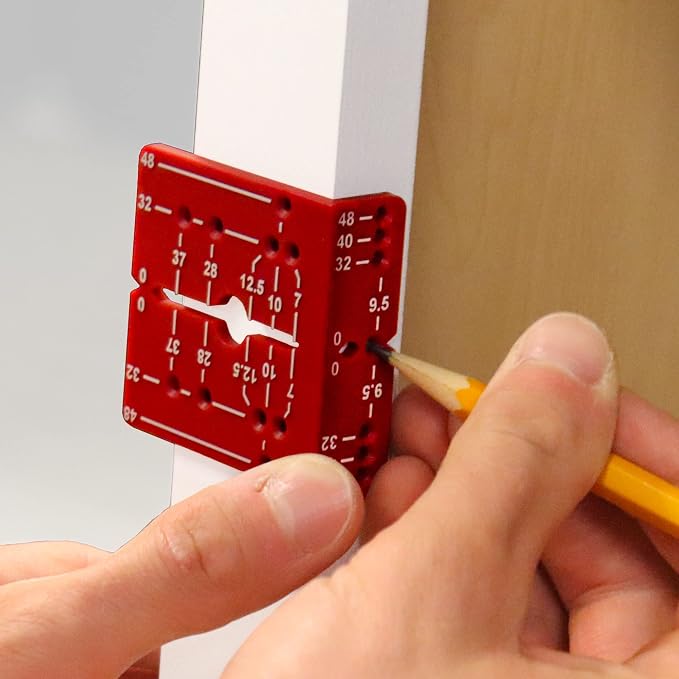

The hinge marking guide detaches from bottom of jig and allows you to transfer and mark center lines and hinge location to cabinet wall or frame
